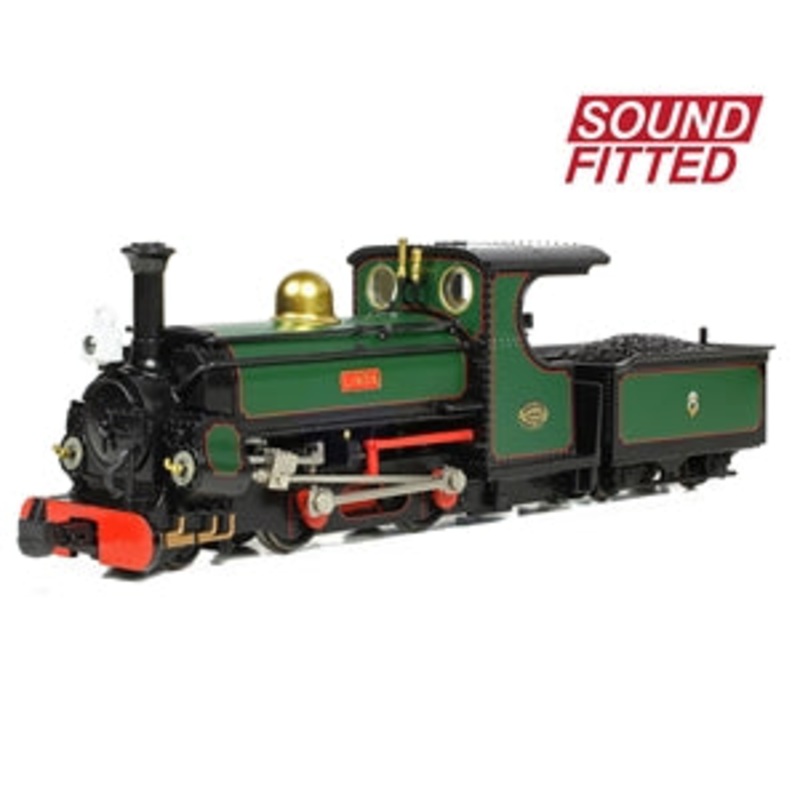

The new Bachmann Narrow Gauge model of Linda brings the story of this Mainline Hunslet locomotive right up to date, with models of Linda as operating on the Penrhyn Quarry Railway and in her early-Ffestiniog Railway condition already produced by Bachmann in OO9 scale. Completing the story is this latest release, depicting Linda in her current condition as a 2-4-0 Saddle Tank with Tender (2-4-0STT), carrying the vibrant Ffestiniog Railway Green livery and complete with SOUND FITTED.

This model was first announced during the Ffestiniog Railways Bygones Weekend. Linda (and sister locomotive Blanche) have called the Ffestiniog Railway home since 1963, and we would like thank the railway for the support and advice they have given so generously during the development of these Bachmann Narrow Gauge models.

Originally built as a 0-4-0ST for the Penrhyn Quarry Railway, Linda was purchased by the Ffestiniog Railway in 1963 and underwent conversion to left-hand drive, was fitted with a tender and had her cab profile modified, before being rebuilt as a 2-4-0STT in 1970, during which she was also converted to oil firing. Converted back to coal firing in 2013, this Bachmann Narrow Gauge model depicts Linda in the condition she ran from 2013 until 2021, before being taken out of service for overhaul.

These small but mighty models feature a diecast metal saddle tank, cylinder block, frames and footplate; coupled with a precision moulded cab, smokebox and other separate detail components to produce a model that is strong and robust yet intricately detailed. The cab interior is a work of art and through the firebox hole firebox lighting is fitted which operates on both analogue and DCC. Talking of DCC, with SOUND FITTED this model can be enjoyed on both DCC and Analogue Control straight out of the box, providing realistic sounds for added enjoyment.

Bachmann Narrow Gauge OO9 Scale

• Era 9
• Ffestiniog Railway Lined Green livery
• Named Linda
• Etched Name Plates and Works Plates included
• SOUND FITTED– Fitted with a Zimo MX659N18 DCC Sound Decoder See below for the function list
• Length 115mm

BACHMANN NARROW GAUGE MAINLINE HUNSLET SPECIFICATION

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• 2-4-0 Wheel Formation
• Welded Saddle Tank
• Open Cab with Tender
• Reprofiled Cab Roof
• Vacuum Brakes Fitted
• Modified Injector Pipework
• Square Sand Pots mounted on the front of the Saddle Tank
• Single Piece Smokebox Handrail
• Left-hand Drive
• Slide Valve Cylinders
• Original Chimney
• Sliding Firebox Door

MECHANISM:

• Coreless motor with flywheel
• Electrical pickup from all driving and tender wheels
• Separate metal bearings fitted to each axle (excluding front pony wheels)
• Diecast metal chassis block
• 9mm (OO9 narrow gauge) wheels to NEM310 standards with authentic profile and detailing
• Coupling pockets to NEM355 standards, into which a standard OO9 coupling hook assembly is fitted (hook and loop coupling also supplied for optional fitting)
• Designed to operate on curves of first radius (228.6mm) or greater

DETAILING:

• Diecast metal cylinder block, frames, footplate and saddle tank
• Precision moulded plastic smokebox and cab
• Highly detailed and decorated cab interior including separately fitted regulator, reverser leaver, handbrake, and gauge frames and hinged firebox door which can be posed open/closed
• Hinged fall-plate between locomotive and tender
• Separately applied details including reverser, injectors, handrails, smokebox dart, whistle and tool brackets (where applicable)
• Each model supplied with a set of authentically decorated etched name plates and works plates

Lighting:

• Firebox Glow (on analogue) / Firebox Glow & Flicker (on DCC or whenSOUND FITTEDmodels are used on analogue)

DCC: Next18 DCC decoder interface

SOUND:

• Speaker installed in all models for optimum sound reproduction
• Zimo MX659N18 DCC Sound Decoder fitted toSOUND FITTEDversions
• Sound files produced specifically for the Bachmann Narrow Gauge Mainline Hunslet using recordings from real locomotives
• SOUND FITTEDmodels operate on DCC and Analogue control as supplied

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model
• Logos, numerals and text added as appropriate using multi-stage tampo printing incorporating authentic typefaces, logos and colours

SOUNDS

• F1 – Sound – On/Off
• F2 – Brake
• F3 – Cylinder Drain Cocks
• F4 – Bell Whistle (Speed Related)
• F5 – Reverser
• F6 – On – Firebox Door Open / Off – Firebox Door Closed
• F7 – Coal Shovelling (only with F6 On)
• F8 – Blower
• F9 – Flange Squeal (Speed Related)
• F10 – Speed Lock
• F11 – Hand Brake (Functional)
• F12 – Water Tank Filling
• F13 – Coupling Clank
• F14 – Light Engine Mode
• F15 – Fade All Sounds
• F16 – Guard’s Whistle
• F17 – Enable Auto Wagon Buffering
• F18 – Injector
• F19 – Alternative Whistle (Speed Related)
• F20 – Shunting Mode
• F21 – Safety Valves Lifted
• F22 – ‘Clear my side
• F23 – ‘Red light ahead
• F24 – ‘Coal on the fire
• F25 – Volume Down
• F26 – Volume Up

Analogue Users: Please note that normal load running sounds, acceleration steam chuff sounds and any other automatic and randomised sounds will also operate when this model is used on analogue control (DC) straight from the box!
